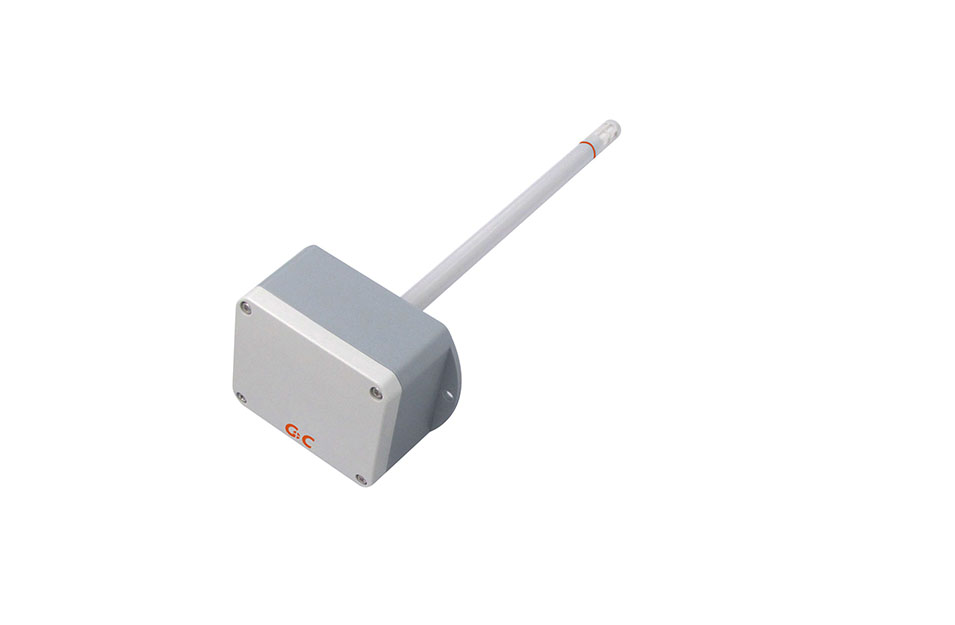

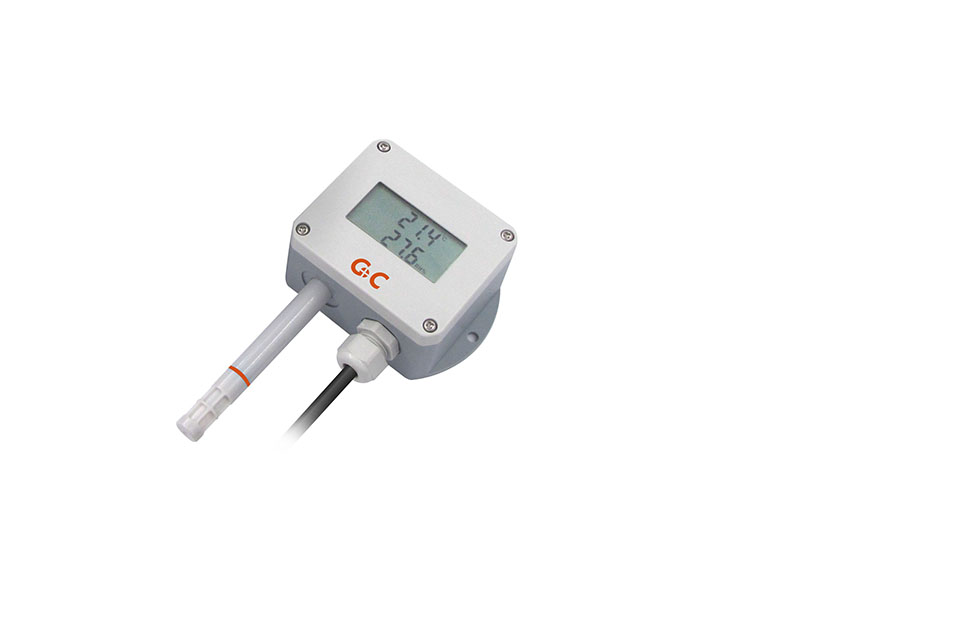

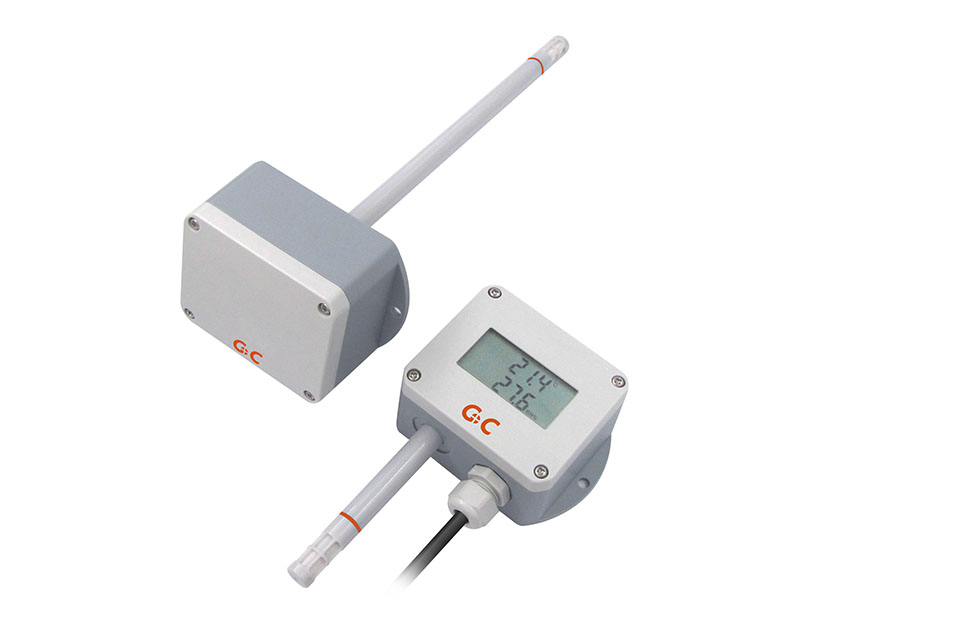

TH60 Temperature and Humidity Transmitter for Commercial HVAC

TH60 is an economical temperature and humidity transmitter with very high price-performance ratio, which can be used for the vast majority of intelligent buildings temperature and humidity monitoring. Its measuring components use digital temperature and humidity sensors. There are two installation methods: wall installation and pipe installation; There are many output signals: 4~20mA, 0~5, 0~10V or RS485, and the display is optional.

Typical Applications

Intelligent building

Commercial HVAC

Technical Data

Input and output

Operating voltage	24V DC ± 20%	Current output	4 ... 20mA RL < 500 Ohm
Power consumption	＜ 20mA (current or voltage output)	Voltage output	0 ... 10V
			Channel precision: ±0.2%FS
	＜ 6mA (digital output)	Digital output	RS485 (Modbus RTU)

Measurement Parameter

Relative humidity		Temperature
Measurement range	0 ... 95%RH	Measurement range	?40 … +80°C
Measurement precision	±3%RH (20 … 80%RH & 25℃)	Measurement precision	±0.5°C (25℃)
τ₆₃ response time	15s	- -	- -
Sensor	Digital temperature and humidity sensor	- -	- -

The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.

Technical Specification

Wiring connection	The maximum cable diameter of the terminal is 1.5mm²	Operating temperature	Without display: -40 ... 80℃
Cable connector	M16*1.5 gland connector (threading diameter 4.5~10mm)		With display: -20 ... 60℃
Shell material	PC (flame-retardant grade UL94-V0)	Storage temperature	-20 ... 60℃
Probe protection	Plastic film filter	Electromagnetic compatibility	EN61326-1 EN61326-2-3
Protection grade	IP65

Data download:

TH60 Temperature and Humidity Transmitter for Commercial HVAC Product Manual
